Electric Heaters

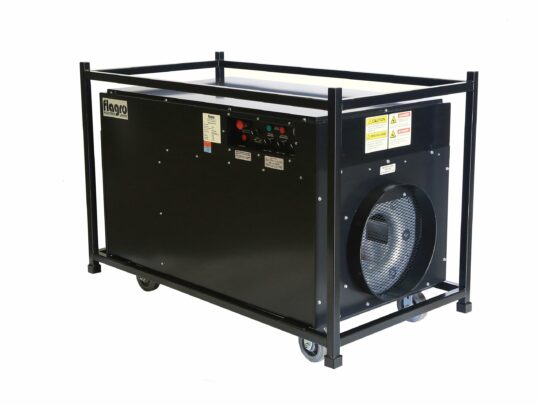

FLE-150
150KW / 512,000 BTU/Hr; 7,300 cfm
90KW / 307,000 BTU/Hr; 6,700 cfm
60KW / 205,000 BTU/Hr; 5,400 cfm
To Request a Quote:
Key Features
- Ductable Supply & Return
- Multiple Heat Range (Kw) Settings
- Cam-Lock Electrical Connection
- Remote Thermostat Operation
- High Static Blower
Product Literature
Technical Specifications
- Fuel Type
- Electric
- BTU/HR
- 60kW SETTING: 205,000 BTU/hr,
90kW SETTING: 307,000 BTU/hr,
150kW SETTING: 512,000 BTU/hr - CFM
- 60kW SETTING: 5,400,
90kW SETTING: 6,700,
150kW SETTING: 7,300,
FAN ONLY: 7,900 - Air Outlet Diameter
- 20″
- Air Inlet Diameter
- 20"
- Amperage Draw (amps)
- 200
- Power Requirements
- 480 Volt/3PH
- Engine
- N/A
- Dimensions
- 66″ x 36″ x 40″
- Weight (lbs)
- 560
